Interacting Doubles:
2 HI Systems, 1 HI Tail


  figure5183
Gzipped Postscript Version

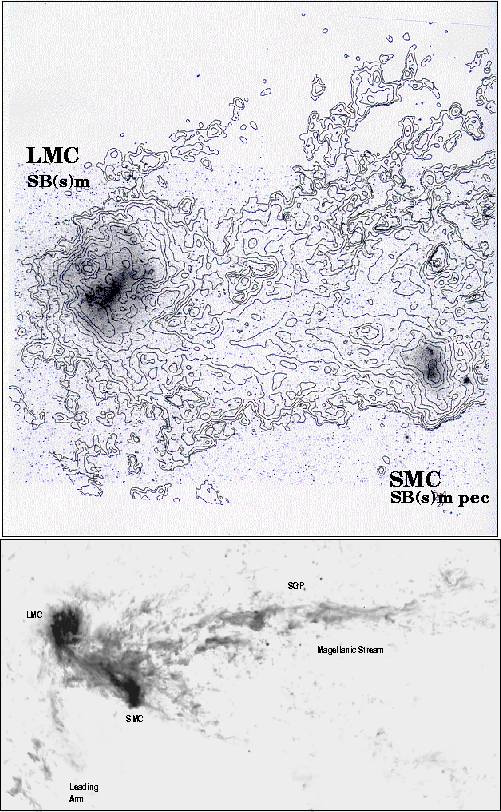

Figure 73: The Large and Small Magellanic Clouds and the Magellanic Stream.
HI: Parkes Multibeam All-Sky Survey (see Stavely-Smith et al., these proceedings, p. 427), 15.5' resolution, contours=tex2html_wrap_inline20334 cmtex2html_wrap_inline20048.
Optical: Image from the color imaging team at Mt. Stromlo Observatory (see Bessell, M. 2000, PASA, 17, 179).
Reference: Putman, M.E., et al., 1998, Nature, 394, 752.

  figure5203
Gzipped Postscript Version

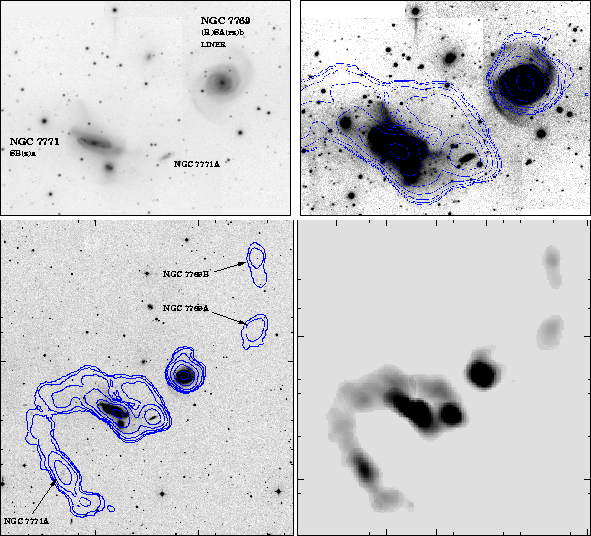

Figure 74: The NGC 7769/7771 System.
HI: VLA D-array, tex2html_wrap_inline20780 resolution, contours=tex2html_wrap_inline20334 cmtex2html_wrap_inline20048.
Optical: Top panels: Palomar 5m Gunn r, FOV=tex2html_wrap_inline20788. Bottom left panel: DSS, FOV=tex2html_wrap_inline20790.
Reference: Nordgren, T. E., Chengalur, J. N., Salpeter, E. E., & Terzian, Y. 1997, AJ, 114, 77.

  figure5219
Gzipped Postscript Version

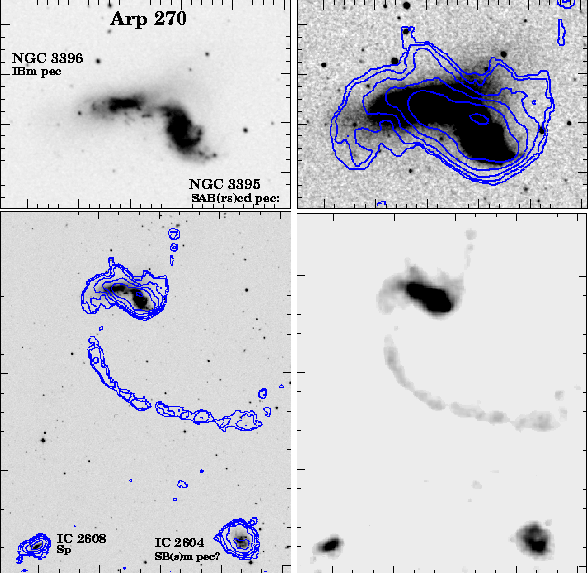

Figure 75: The Arp 270 System.
HI: VLA C+D-array, 21'' resolution, contours=tex2html_wrap_inline20100 cmtex2html_wrap_inline20048.
Optical: DSS, FOV=tex2html_wrap_inline20798 (top), tex2html_wrap_inline20800 (bottom).
Reference: Clemens, M. S., Baxter, K. M., Alexander, P., & Green, D. A. 1999, MNRAS, 308, 364. See also Clemens, Winter, & Alexander, these proceedings, p. 208.

  figure5240
Gzipped Postscript Version

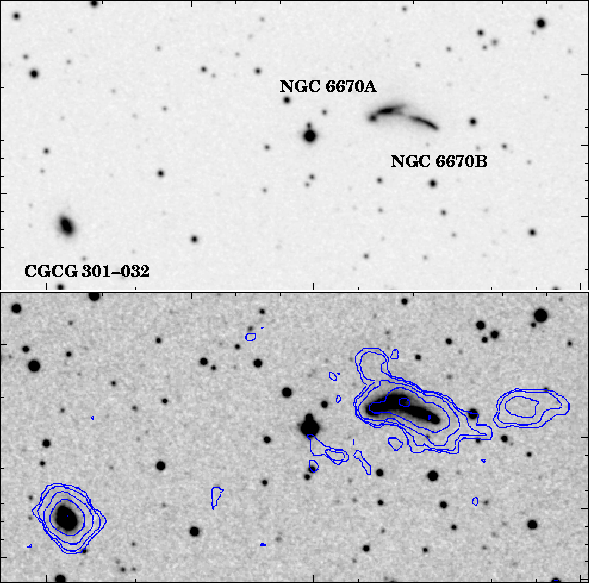

Figure 76: The IR Luminous Merger NGC 6670.
HI: VLA C-array, tex2html_wrap_inline20802 resolution, contours=tex2html_wrap_inline20100 cmtex2html_wrap_inline20048.
Optical: DSS, FOV=tex2html_wrap_inline20808.
Reference: Wang, W.-H., Lo, K. Y., Gao, Y., & Gruendl, R. A. 2001, AJ, 121, 140.

  figure5254
Gzipped Postscript Version

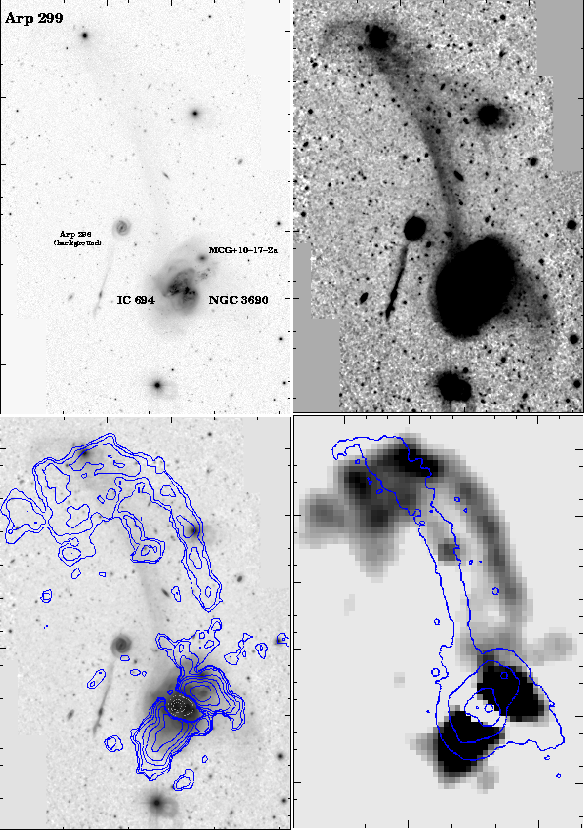

Figure 77: The IR luminous merger Arp 299.
HI: VLA C+D-array. Lower left: 21'' resolution, contours=tex2html_wrap_inline20066 cmtex2html_wrap_inline20048. Lower right: 35'' resolution. Optical: UH 88'' B-band, FOV=tex2html_wrap_inline20822.
Notes: There is a small detected companion 10' to the west of Arp 299.
Reference: Hibbard, J. E., & Yun, M. S. 1999, AJ, 118, 162.

  figure5280
Gzipped Postscript Version

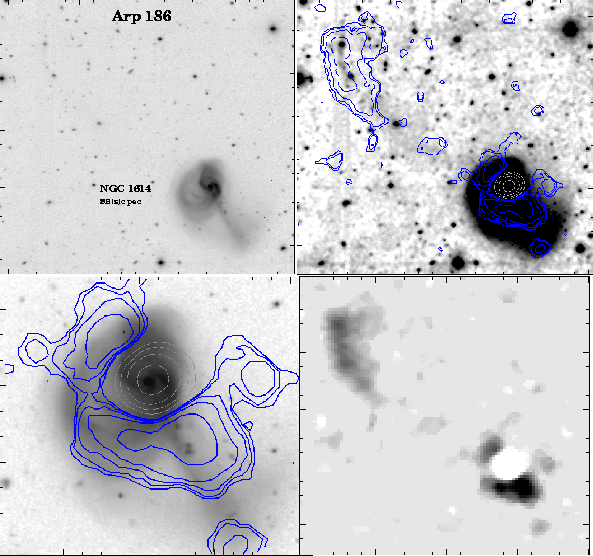

Figure 78: The IR luminous merger NGC1614.
HI: VLA C+D-array, 19'' resolution, contours=tex2html_wrap_inline20066 cmtex2html_wrap_inline20048.
Optical: UH 88'' B-band, FOV=tex2html_wrap_inline20836 (top), tex2html_wrap_inline20838 (bottom left).
Reference: Hibbard, J.E., & Yun, M. S. 1996, in Cold Gas at High Redshift, eds. M. Bremer, H. Rottgering, P. van der Werf, & C. L. Carilli (Dordrecht: Kluwer), 47.
